VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Austin, TX | Juniper Windows Austin

The VLX 150 Heavy-Duty Sliding Door is built for openings that most sliding doors can’t handle. We’re talking spans up to 24 feet wide, glass panels that weigh hundreds of pounds, and daily use that would wear out a lesser system in five years. Juniper Windows Austin is an authorized ViewLux installation partner, which means we order directly from the manufacturer, install to their exact engineering specs, and back the work with a warranty that stays intact because the door was put in right. If you’re planning a wide indoor-outdoor living space in Austin, this is the door to spec. Call (325) 420-1750 to talk through your project and get a written quote.

Call (325) 420-1750

Product Overview – VLX 150 Heavy-Duty Sliding Door

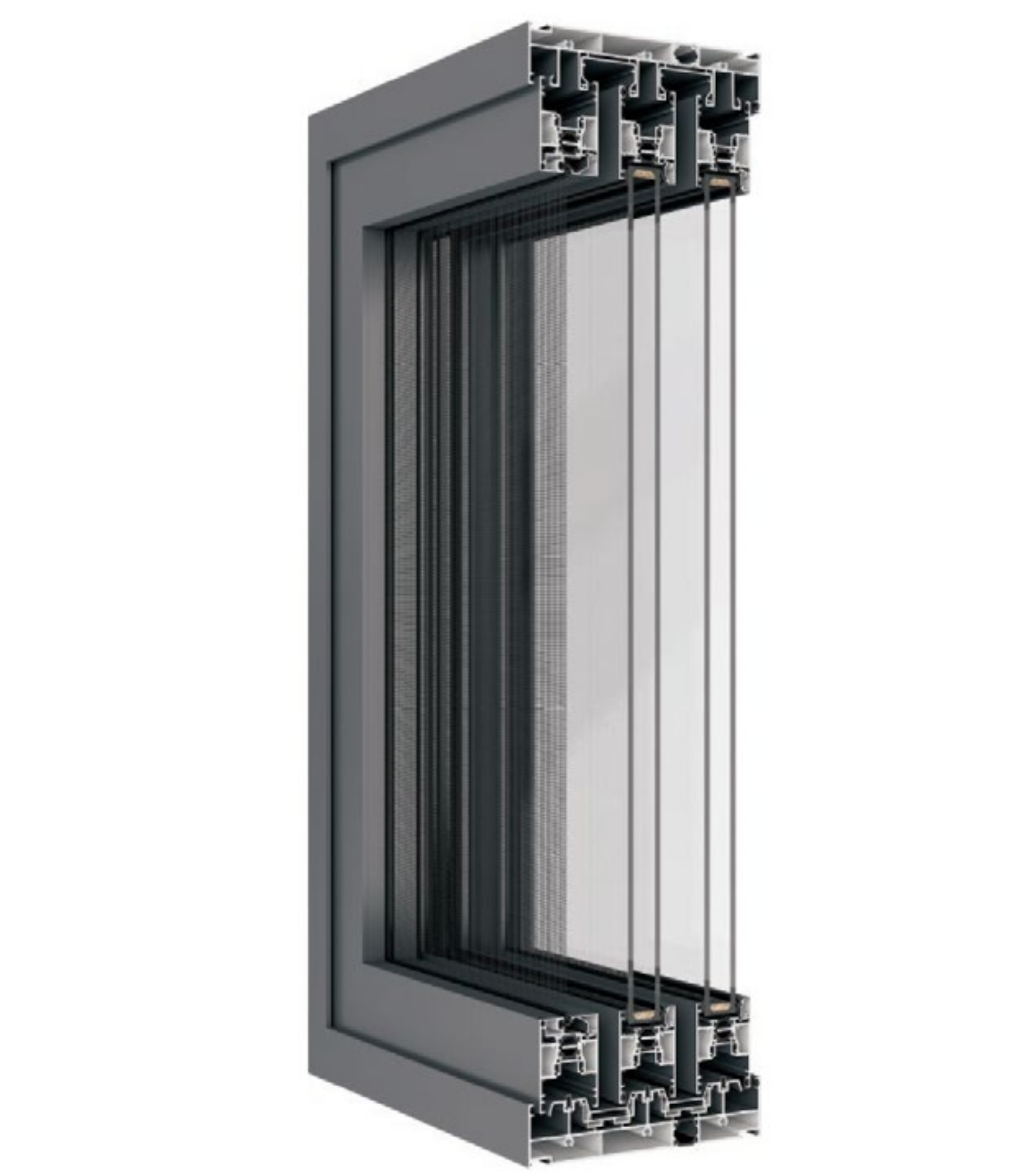

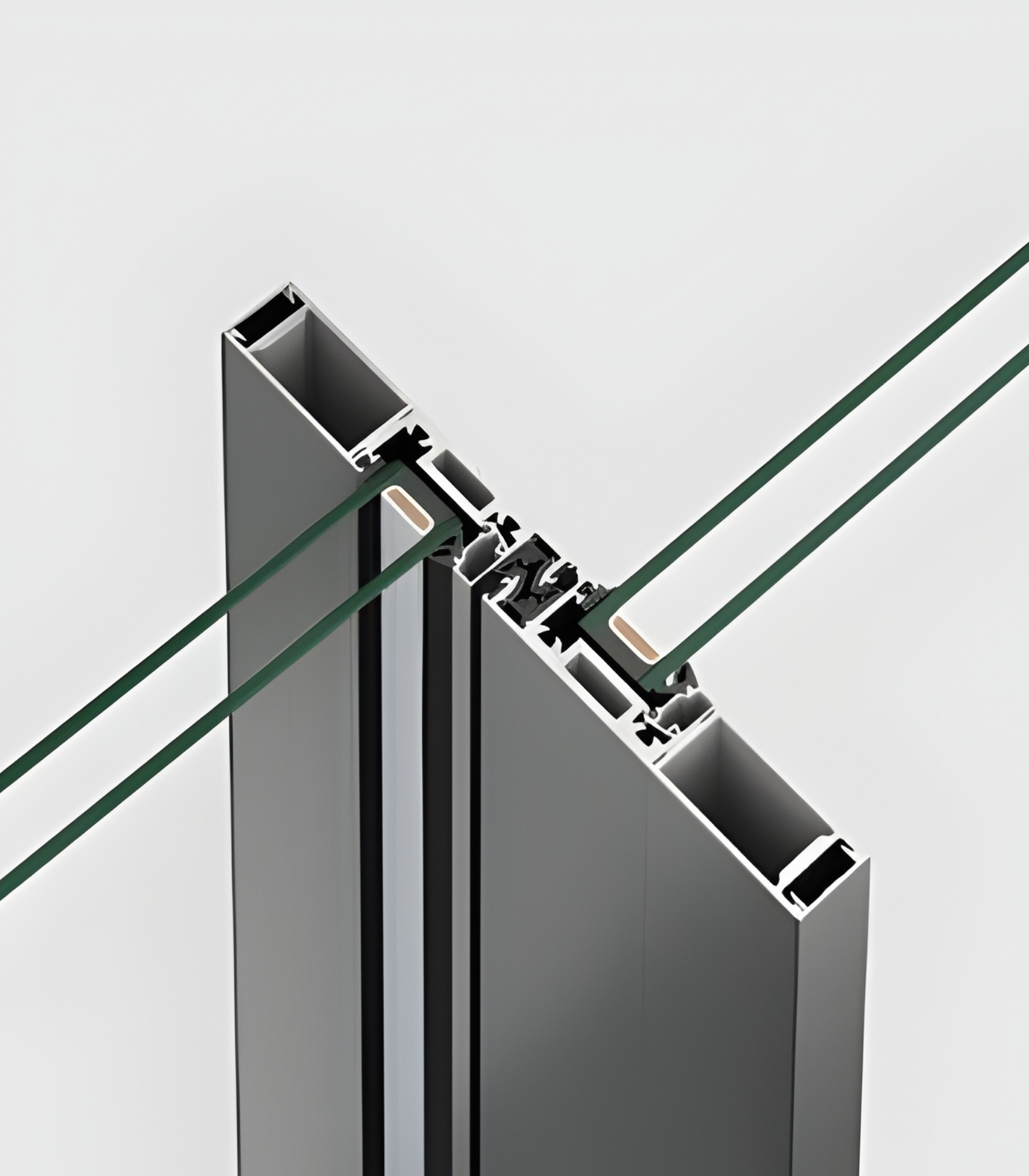

ViewLux designed the VLX 150 as a strength-first aluminum slider. The frame wall measures 0.118″ thick, and the profile spans 2.95″ across. Those numbers mean the door doesn’t flex when a 300-pound panel rolls along the track. Most builders who specify this series are working on modern Austin homes with expansive glass walls, ranch properties with wide outdoor views, or commercial storefronts that need a door to function flawlessly for decades.

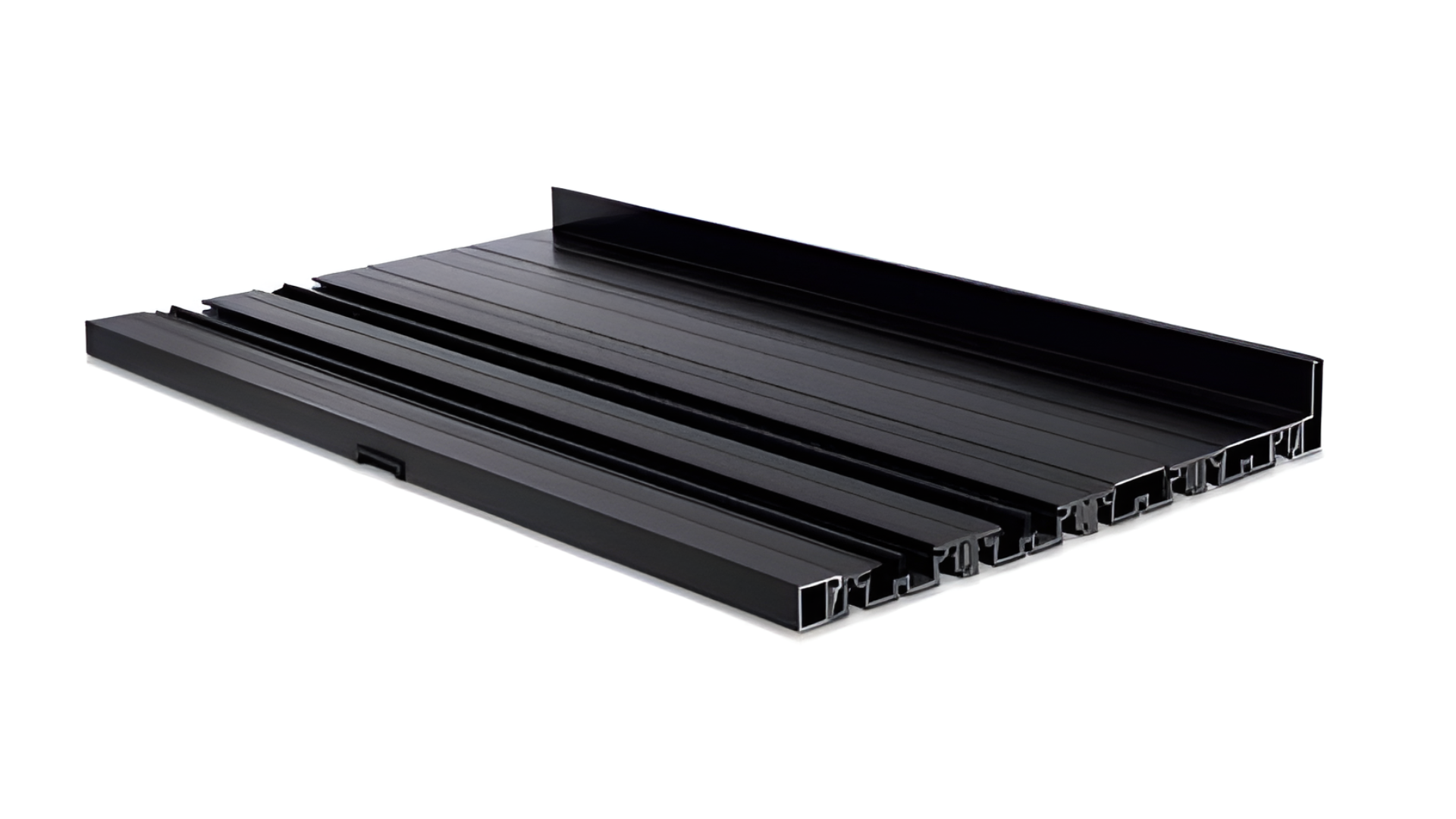

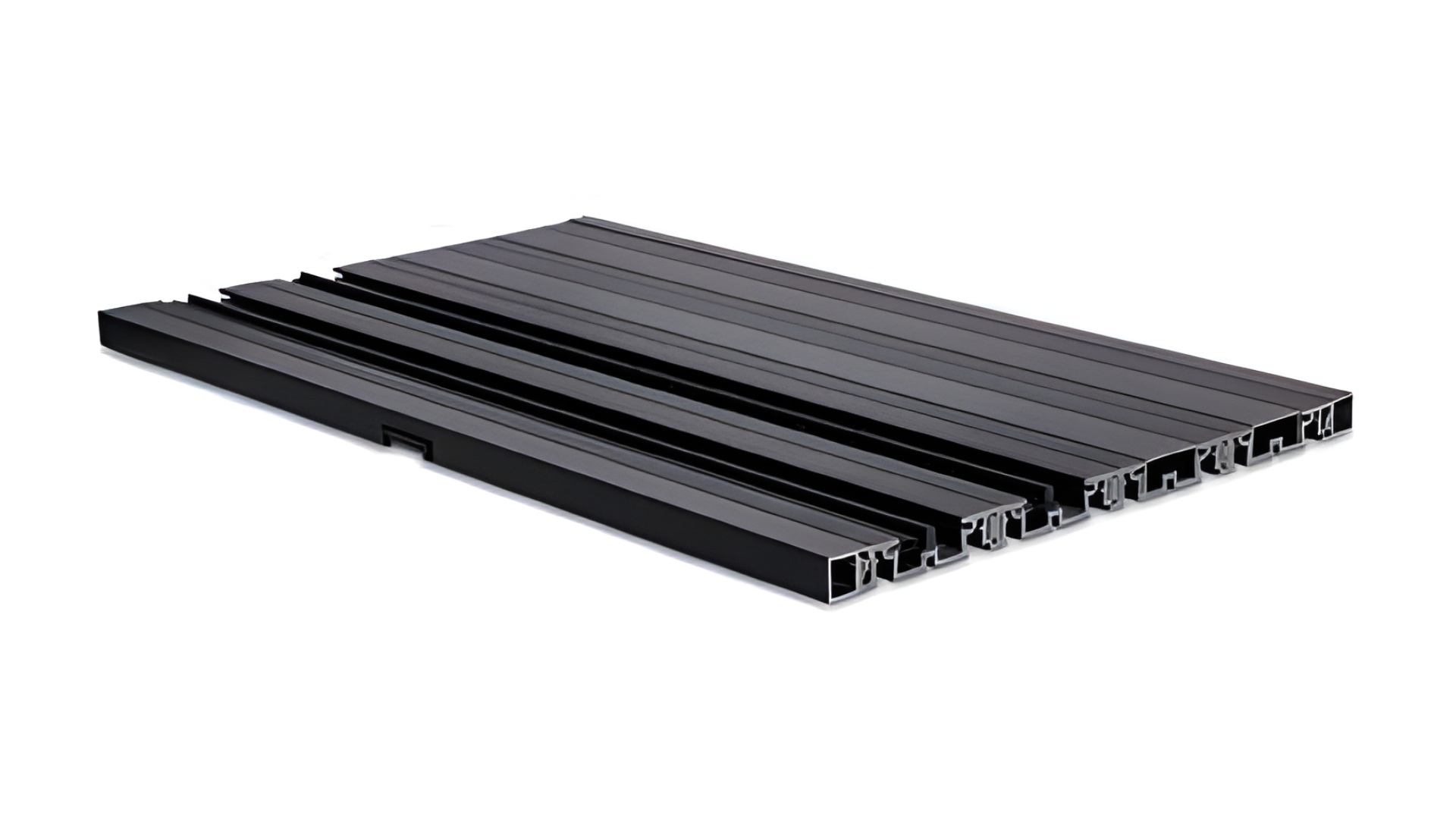

The hardware is what separates this from mid-tier sliders. The rollers are stainless steel, the track is extruded aluminum, and the locking mechanism engages at multiple points along the panel. You can configure the VLX 150 as a 2-track, 3-track, or 4-track system, which changes how many panels slide and how wide the opening feels when everything is stacked. Multi-track setups let you open 60% or more of the total span, something you simply can’t do with a standard two-panel patio door.

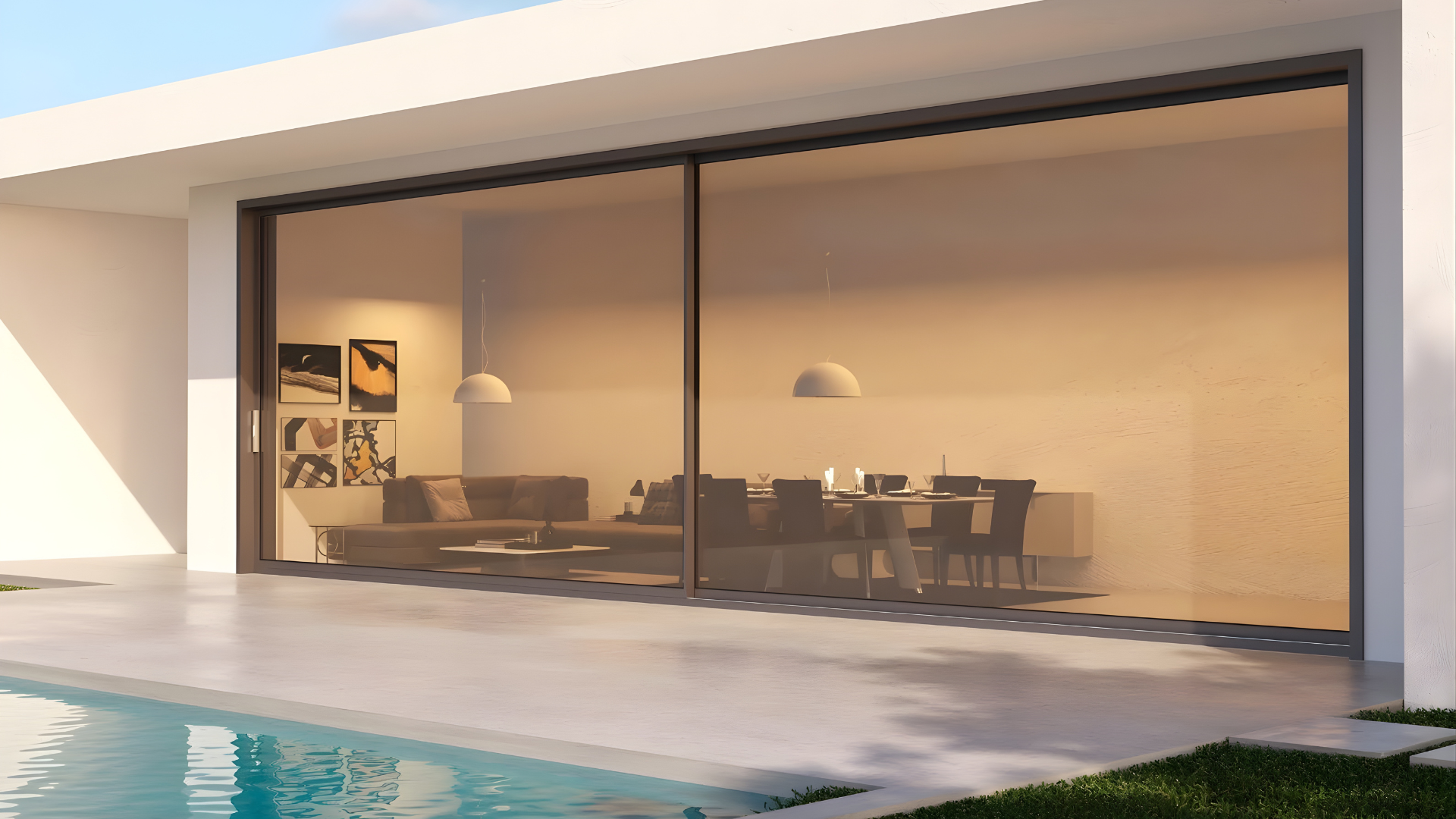

Architecturally, this door fits when the glass is the wall. We see it specified on contemporary builds in Tarrytown, mid-century remodels in Barton Hills, and lake houses around Lake Travis where the owner wants the view uninterrupted. Because the frame is aluminum, not vinyl or wood, the sightlines stay thin while the structure stays rigid. Juniper Windows Austin has installed this series across the greater Austin area, and the feedback is consistent: it operates smoothly on day one and stays that way.

Technical Specifications

• Wall thickness: 0.118″ extruded aluminum, heavy-gauge for structural rigidity across long spans

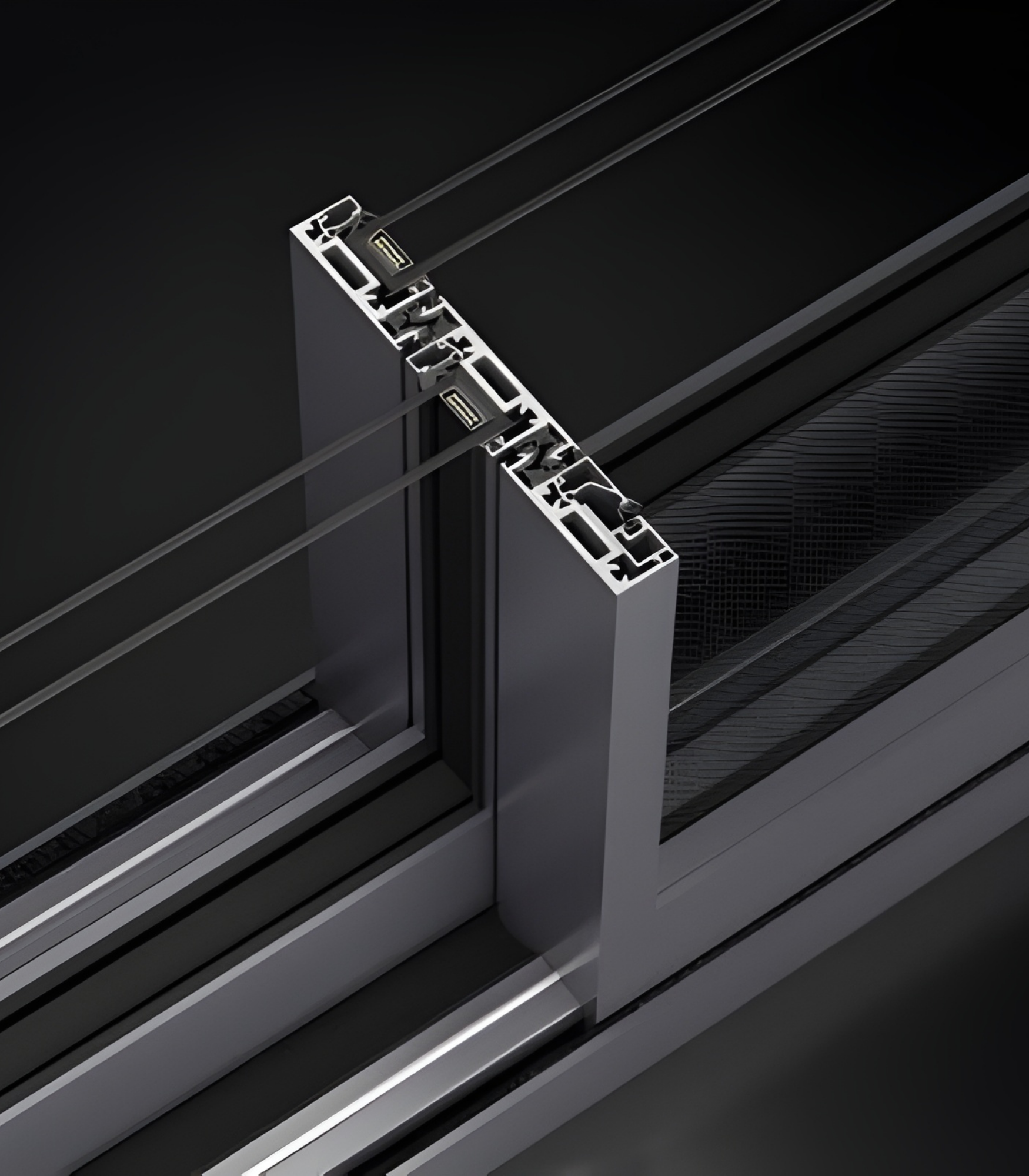

• Profile width: 2.95″ frame depth, slim enough for modern sightlines, deep enough for reinforced hardware
• Maximum span: Up to 24 feet wide, suitable for multi-panel configurations on large openings
• Track configurations: 2-track, 3-track, and 4-track systems for different opening ratios
• Hardware: Stainless steel rollers and multi-point locking mechanisms on all moving panels
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or standard sliding screen, both fitted to the track system
• Thermal performance: Thermally broken frame, NFRC-rated for energy efficiency
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 low-expansion foam on all perimeter joints

Performance Features

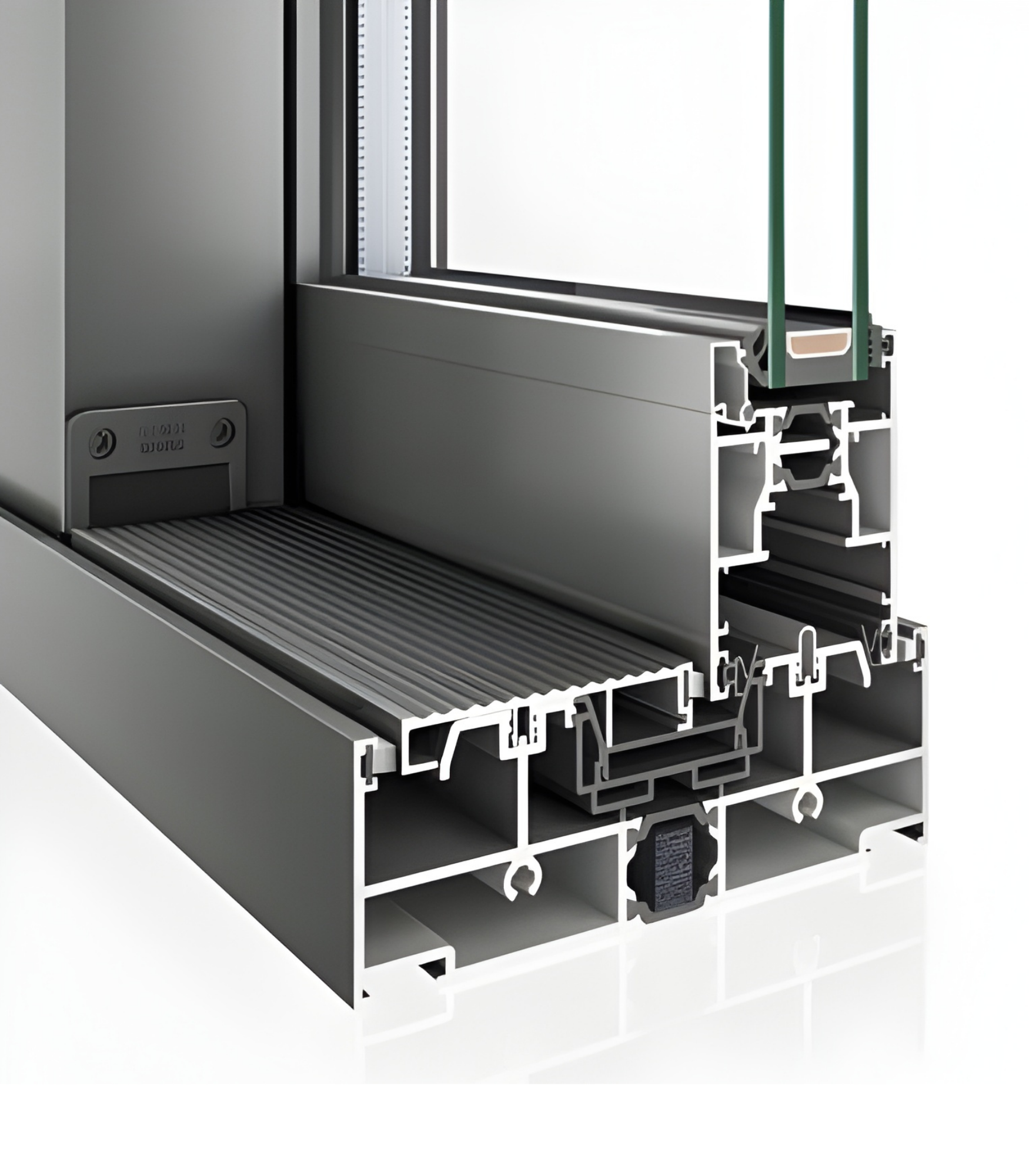

Thermal Efficiency. The VLX 150 uses a thermal break inside the aluminum frame that interrupts heat transfer between the exterior and interior. In Austin’s summer months, that means the frame doesn’t become a radiator on the inside of your living room. Pair it with Low-E glass for the strongest energy performance, and you’ll see the difference on your cooling bill. The NFRC ratings are available for every glass combination, so you know exactly what you’re getting before you commit.

Acoustic Performance. Laminated glass in the VLX 150 cuts down outdoor noise significantly. We recommend it for homes near MoPac, I-35, or busy streets in neighborhoods like Hyde Park or Cherrywood. The combination of a tight aluminum frame, quality weatherstripping, and laminated glass panels drops traffic noise to a level that makes conversation and sleep easier.

Airtightness & Weather Seal. Every perimeter joint on this door gets sealed with AAMA 812-rated low-expansion foam during installation. The weatherstripping is engineered into the frame channels, not glued on as an afterthought. What that means in practical terms: no drafts in January when a cold front pushes through Austin, and no hot air leakage in August when the AC is fighting 105 degrees.

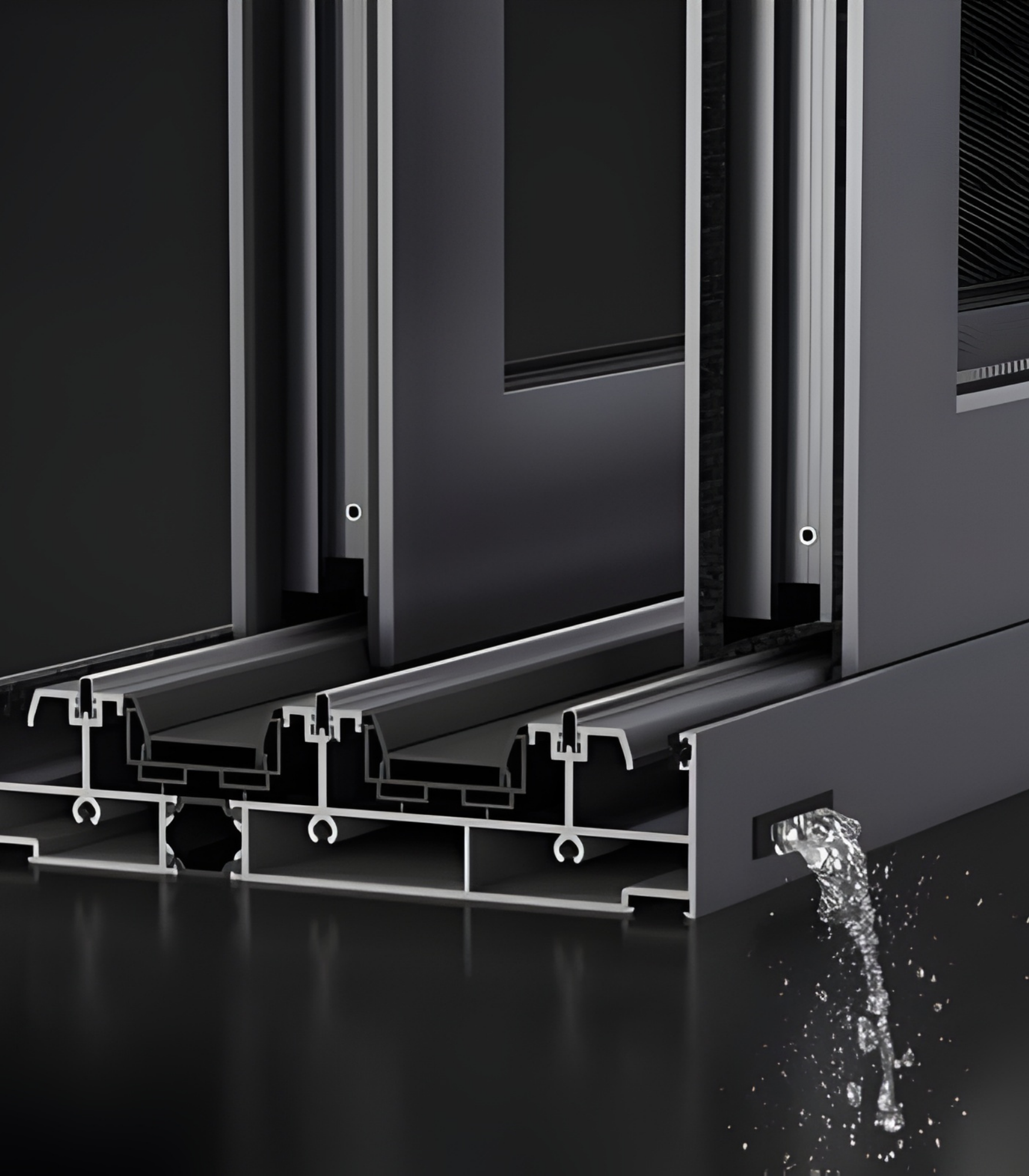

Waterproofing. The sill design on the VLX 150 is critical for Central Texas weather. Austin gets sudden, heavy downpours, and a sliding door that leaks is a five-figure problem. This door’s sill channels water outward, not inward, and the weep system handles pooled water during storms. Combined with the AAMA 2400/2410 installation standard that Juniper Windows Austin follows, water intrusion is engineered out before the door ever sees rain.

Wind Resistance. Austin sits on the edge of Tornado Alley, and spring storms produce straight-line winds that stress large glass panels. The VLX 150 is wind-load rated for local climate requirements, meaning the frame and glass package can handle the pressure. For extra protection, spec laminated glass, which holds together even if the panel is struck and cracked. It won’t shatter into pieces.

Security & Hardware. The stainless steel rollers carry the panel weight without grinding, and the multi-point lock secures the door at several points along the frame rather than one flimsy latch. For ground-level installations or homes with direct street access, the laminated glass option adds another layer of intrusion resistance. These are doors that feel substantial when you operate them, which is what you want at this price point.

Color & Glass Options

The VLX 150 comes in six finishes. Premium Black is the most requested in Austin right now; it suits modern farmhouse and contemporary builds, and the contrast against stucco or limestone is sharp. Pure White works well on homes with white trim and more traditional exteriors, especially in neighborhoods like Allandale or Crestview. Anodized Silver is the commercial look, clean and industrial, common on downtown condos and office spaces. Bronze reads warm and muted, a good match for Austin’s mid-century homes. Champagne is a lighter warm metallic that’s gained traction on custom builds where the client wants something less common. Teak Wood is a wood-grain finish that gives you the look of timber with the durability of aluminum, ideal for ranch-style homes where wood fits the aesthetic but not the maintenance reality.

On glass: Clear is standard and least expensive. Low-E adds a microscopic coating that reflects heat, the right choice for west-facing walls in Austin. Tempered is safety-rated and should be standard on any door panel, so we order it on all moving panels regardless. Laminated adds impact resistance and noise reduction, and we recommend it for storm-prone areas and homes near highways. Gray Tint and Black Tint reduce glare and solar gain while adding a subtle architectural look to dark-framed doors.

Installation by Juniper Windows Austin in Austin

Here’s the part most people don’t think about until a door fails: a $15,000 sliding door installed poorly is a leak, a draft, and a warranty void waiting to happen. ViewLux requires installation per AAMA 2400/2410 standards. Juniper Windows Austin is an authorized partner because we follow those standards on every job, and we document the process so the warranty stays intact.

Our installation starts with a pre-install inspection of the rough opening. We check the framing, the subfloor, and the header. If the opening isn’t right, we say so before the door arrives, not after. On install day, we set the track and frame level, plumb, and square. Sliding doors are unforgiving: if the frame is off by a quarter inch, the panels won’t glide right and the seals won’t seat. We take the time to get the geometry correct.

Every perimeter joint gets AAMA 812-rated low-expansion foam sealant. This step is non-negotiable. It’s a foam that expands just enough to fill voids without warping the frame, and it’s designed specifically for window and door installation. It blocks air, water, and insects at the point where most sliding doors fail in Austin homes: the joint between the frame and the rough opening.

Austin-specific considerations come into play throughout the job. Our soil expands and contracts with rainfall, which means slab movement is common in certain parts of the city, especially east Austin where clay soil dominates. We account for that movement with properly shimmed and sealed frames. The Texas sun is brutal on perimeter seals, so we use materials rated for UV exposure. And local code requires wind-load ratings on large glazed openings, which the VLX 150 meets.

Before we call the job done, we run a water test on the sill and threshold, operate every panel multiple times, and walk the homeowner through the hardware. Then we clean up. Full stop.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Austin

You need real numbers before you can move forward, and we respect that. Juniper Windows Austin provides written, line-item quotes after a free on-site measurement in Austin and the surrounding metro. No ballpark guesses, no surprises after the job starts. Call (325) 420-1750 to schedule your measurement and get the VLX 150 priced for your exact opening.

Written by the team at Juniper Windows Austin, authorized ViewLux installation partner serving Austin and Central Texas.
