VLX 138 Panoramic Sliding Door

VLX 138 Panoramic Sliding Door in Austin, TX | Juniper Windows Austin

The VLX 138 Panoramic Sliding Door is the product Austin homeowners ask us about when they want a wall of glass that actually works like a door. This isn’t a standard patio slider. It’s a large-span aluminum system engineered to open up entire rooms to backyards, pools, and Hill Country views, with panels that glide over 30 feet on stainless steel bearings. Juniper Windows Austin is an authorized ViewLux installation partner, which means we order this system directly from the manufacturer, install it to AAMA standards, and stand behind the finished product. If you’re planning a modern build, a ranch remodel, or a lakeside retreat near Lake Travis, this door deserves a hard look. Call (325) 420-1750 to talk through your project.

Call (325) 420-1750

Product Overview – VLX 138 Panoramic Sliding Door

The VLX 138 is built around one idea: the least amount of frame between you and the view. The vertical profiles measure just 1.535 inches wide, so when the panels stack open, you’re left with a nearly uninterrupted opening. That’s the kind of detail architects in Austin’s modern neighborhoods, places like Barton Hills, Tarrytown, and Mueller, design entire elevations around.

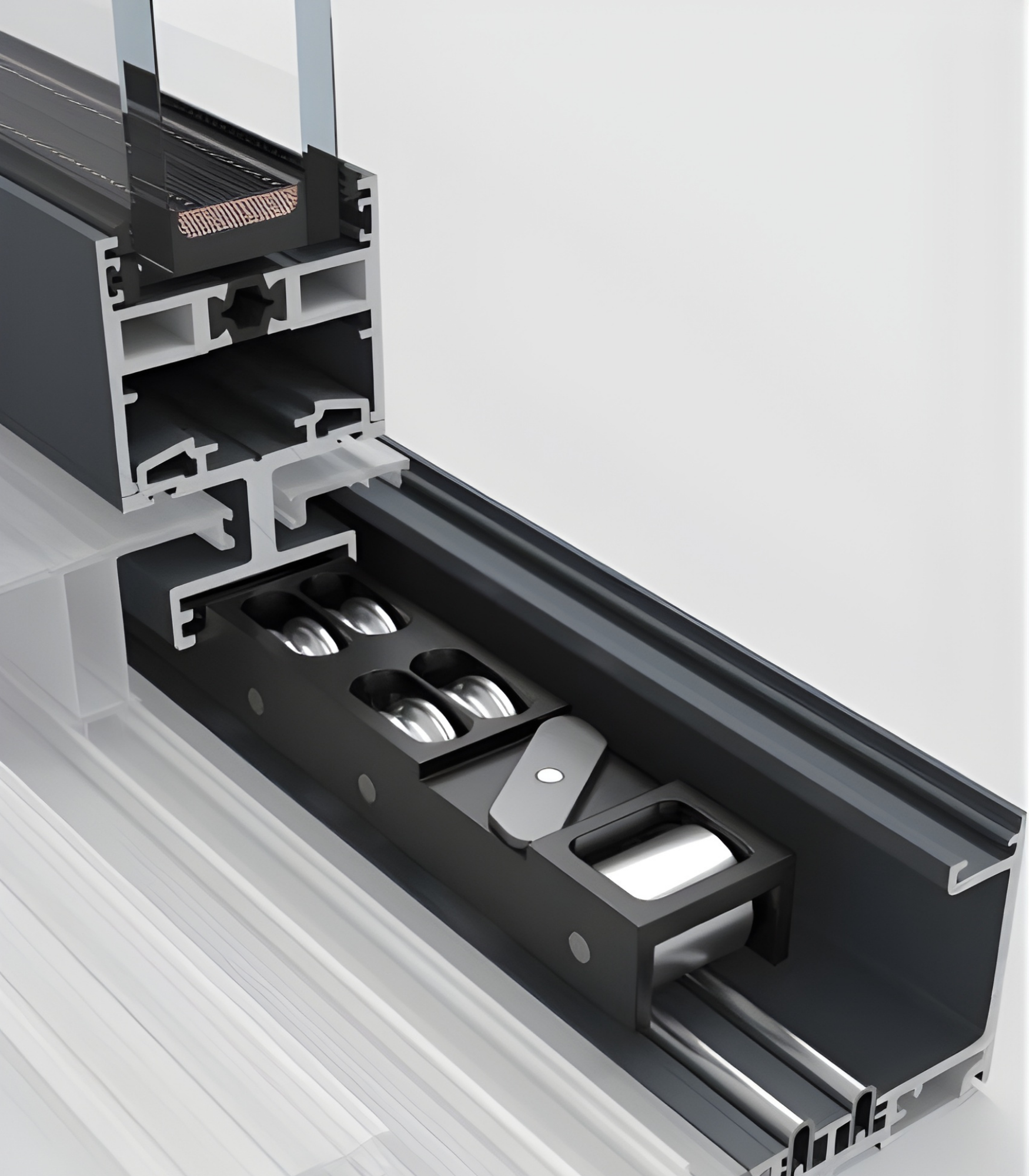

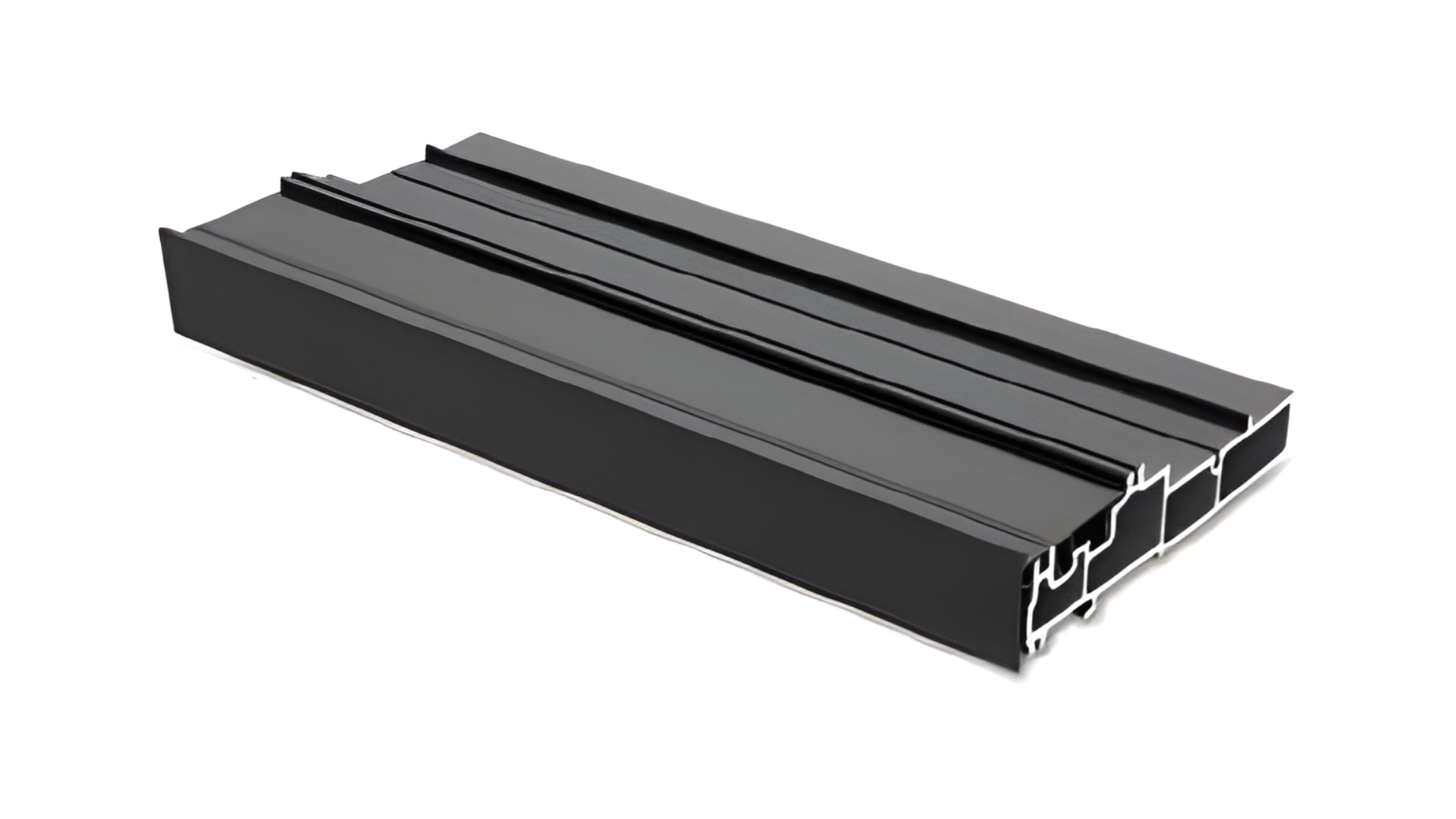

What sets this door apart from the aluminum sliders you’ll find at a big-box store comes down to engineering. The panels ride on stainless steel bearing rollers that keep the weight of the glass moving smoothly, even on panels spanning 12 feet or more. There’s no dragging, no grinding, no wrestling with a stuck door three years after install. The 0.138-inch wall thickness in the aluminum extrusion gives the frame the structural rigidity needed for large spans without the bulk of a commercial storefront system.

ViewLux designed the VLX 138 as a residential luxury product first. It lives in high-end custom homes, but we’ve also installed it in mid-century remodels where homeowners want to replace a dated sliding door with something that feels current without looking out of place. The track configurations matter here: a two-track system works for most replacement projects, while a three-track or four-track configuration lets you open a larger portion of the wall when you want full indoor-outdoor flow. In Austin, where outdoor living runs from March through November, that flexibility changes how you use your home.

Juniper Windows Austin is an authorized ViewLux installation partner, not a reseller. That distinction matters when it comes to warranty coverage, replacement parts, and installation quality. We order directly from ViewLux, and our installers are trained on these specific systems. Call (325) 420-1750 for product availability and pricing.

Technical Specifications

Here are the numbers that matter for the VLX 138. We’ve kept the manufacturer’s measurement notation so you can compare against other aluminum door systems accurately.

• Wall thickness: 0.138 inches – the extrusion wall gauge that gives this door its torsional rigidity on wide spans.
• Frame profile width: 1.535 inches – the visible interlock stile width. This is what creates the slim sightlines when panels meet.
• Maximum span: Up to 36 feet wide – total opening width across multiple panels.
• Track configurations: 2-Track, 3-Track, and 4-Track – more tracks mean more panels stack to one side and a larger clear opening.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint – all available in laminated or tempered configurations.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood – powder-coated or anodized architectural finishes.
• Screen options: Retractable Screen, Sliding Screen – integrated into the frame profile for a clean look.
• Sill options: Flush Sill, Low-Profile Sill, Recessed Sill – choose based on drainage needs and accessibility requirements.

Performance Features

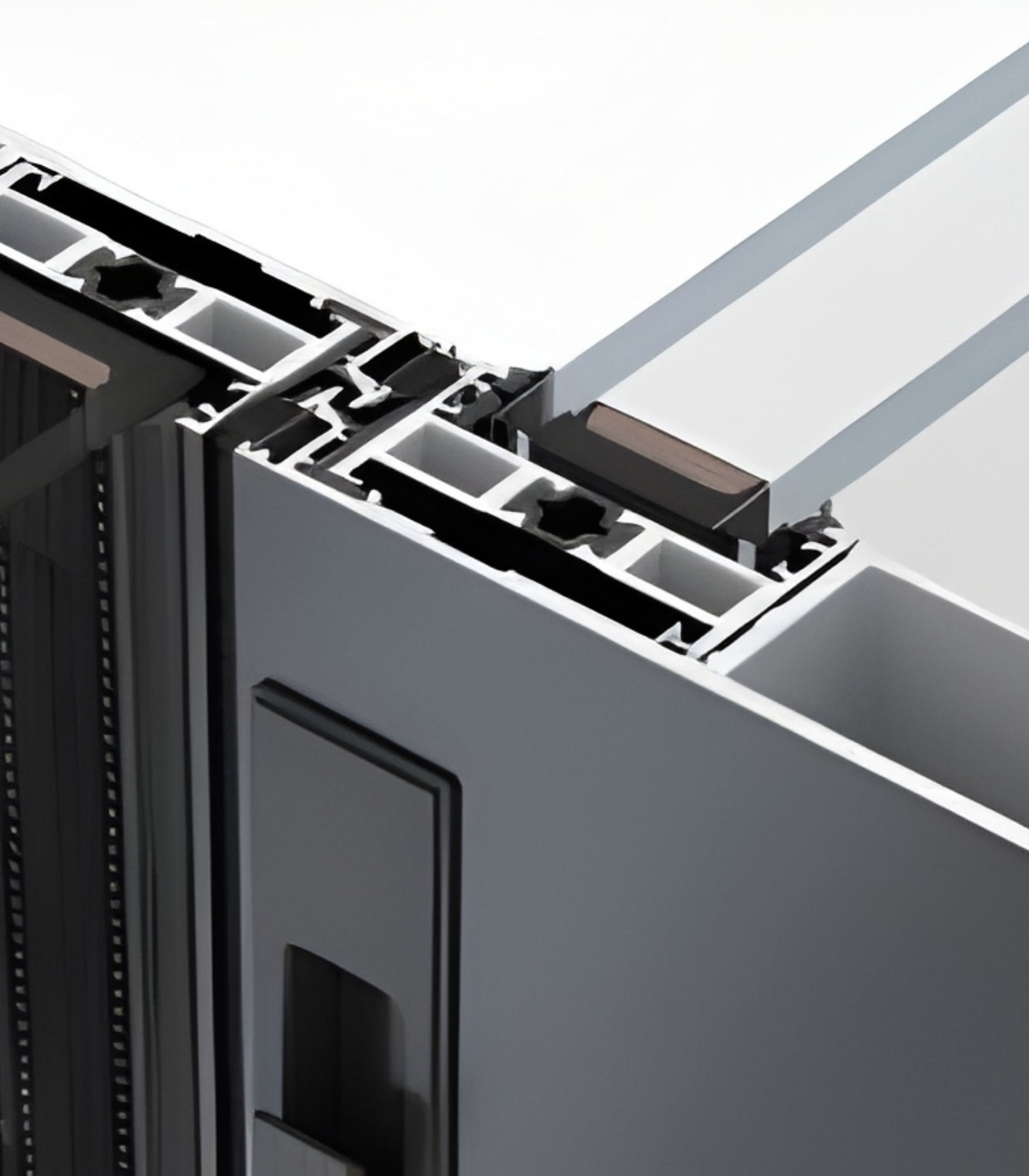

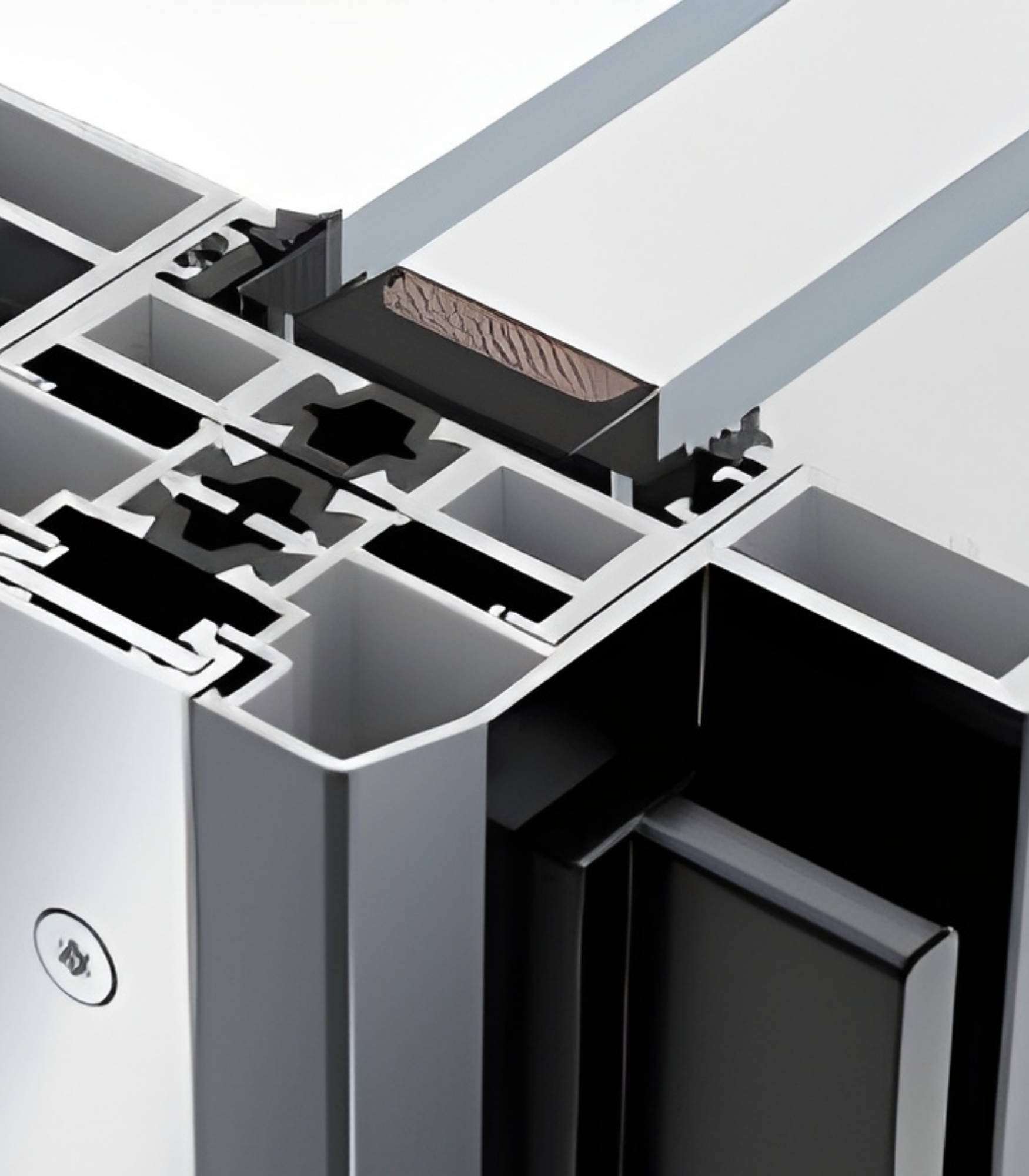

Thermal Efficiency – The VLX 138 uses a thermal break in the aluminum frame, separating interior and exterior metal to reduce heat transfer. Combined with Low-E glass, this door meets NFRC-rated energy performance standards. For an Austin summer, that means the door stays cool to the touch on the inside while the sun blasts the exterior. Your air conditioner works less, and the room stays comfortable even when the door faces west.

Acoustic Performance – Laminated glass options add meaningful sound reduction. Homeowners near MoPac, I-35, or busy streets in South Austin routinely choose laminated glass on sliding doors for this reason. The combination of laminated glass, tight perimeter seals, and the thermal break frame design cuts down road noise and neighborhood sounds. If you’re building near a flight path or a school zone, ask us about sound-control glass packages.

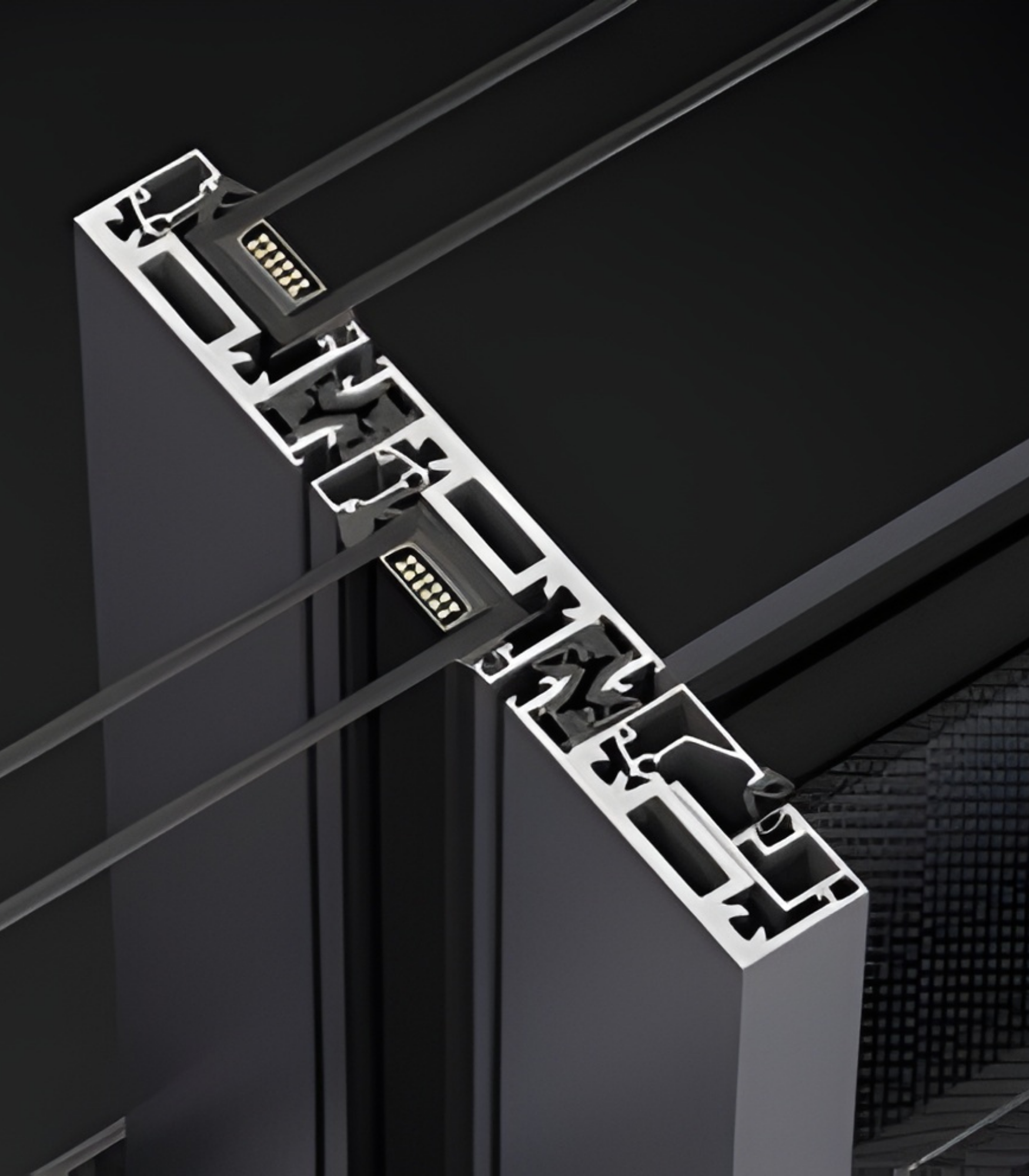

Airtightness & Weather Seal – The VLX 138 is tested for airtightness under pressure, which is not something cheaper sliding doors can claim. The interlocking panels use compression gaskets that seal the meeting stiles, and every perimeter joint gets AAMA 812 low-expansion foam sealant during installation. In Austin, where winter brings occasional strong north winds and summer brings dust, a tight seal keeps conditioned air in and allergens out.

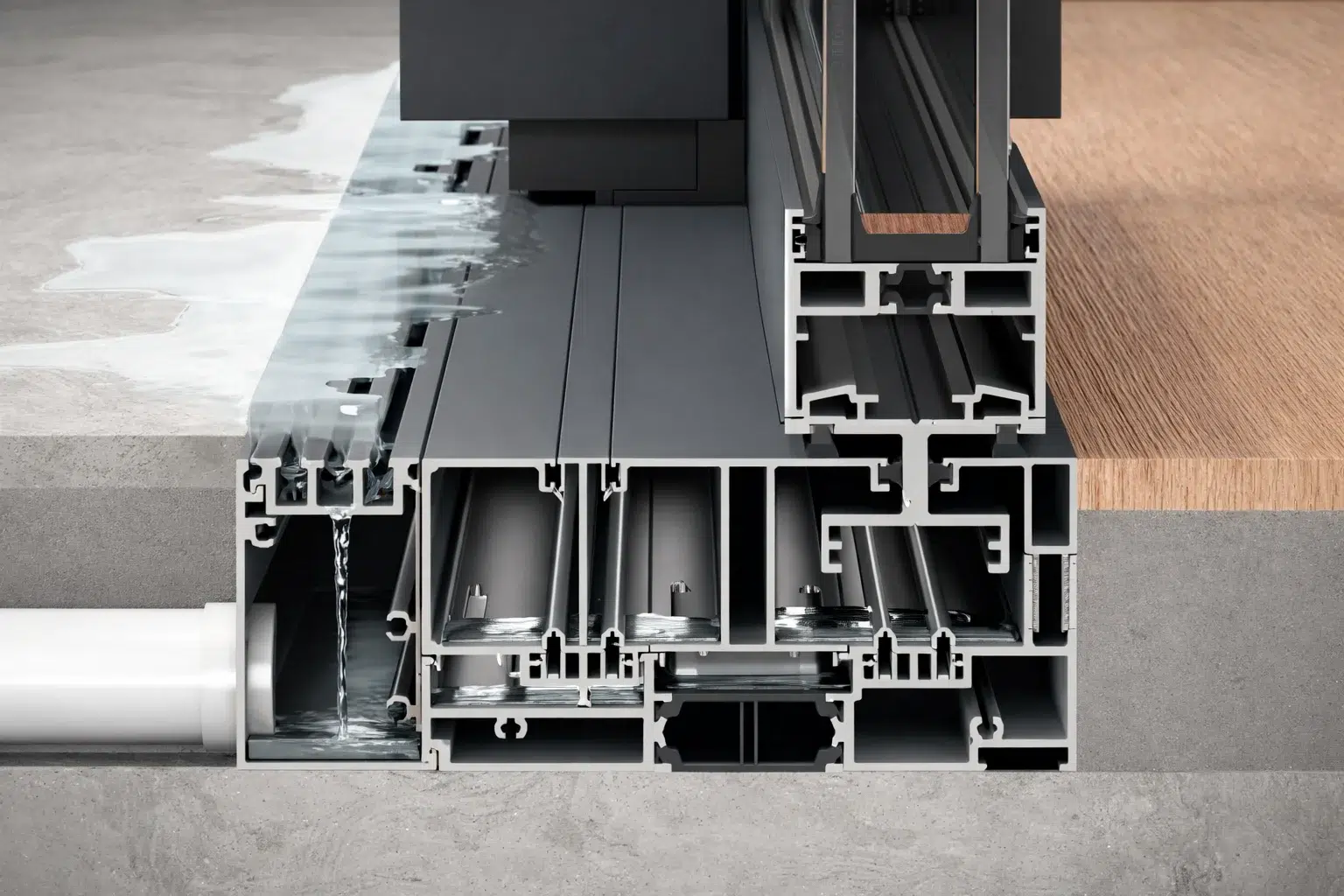

Waterproofing – Water management on a sliding door this size is handled by a sill design that channels water away from the interior. The recessed sill option drains through weep holes into the track system, while the flush sill works for covered patios where direct rain exposure is limited. We test every installation with a water spray after setting the frame to confirm the drainage paths are working before we finish the trim.

Wind Resistance – Austin building codes require wind-load ratings that account for our storm season. The VLX 138 is engineered and tested for wind resistance appropriate to our region, and the 0.138-inch wall thickness gives it the structural margin that thinner extrusions lack. When a spring thunderstorm rolls through with 60 mph gusts, this door does not flex or whistle. Impact-resistant laminated glass is available for an added layer of protection.

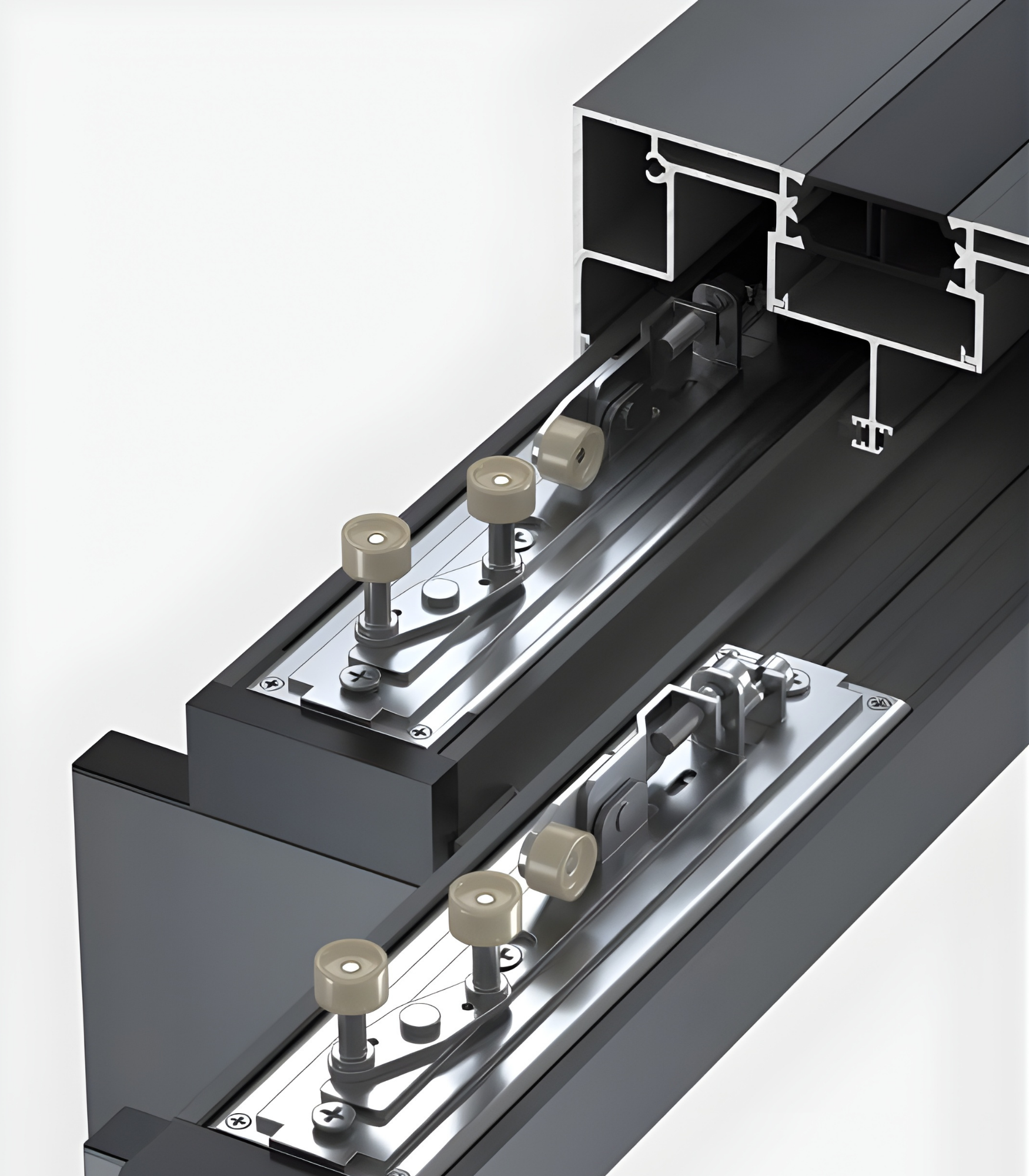

Security & Hardware – The multi-point locking hardware on the VLX 138 engages at the top and bottom of the door panel, not just the center. The stainless steel bearing rollers are mounted in reinforced tracks that resist lifting. For ground-floor installations in Austin, where sliding doors are a common point of entry, this hardware profile matters. The retractable screen option integrates into the jamb and disappears when not in use, so there’s no bulky screen frame breaking up the sightline.

Color & Glass Options

The VLX 138 comes in six architectural finishes. Premium Black and Pure White are the two we order most for Austin projects. Black frames photograph beautifully against limestone and stucco, and they’re the default choice for modern farmhouse and contemporary builds in neighborhoods like Zilker and Allandale. Pure White reads as transitional, blending into trim lines on more traditional homes. Anodized Silver has an industrial, honest-metal look that suits mid-century restorations. Bronze and Champagne are warmer metallic options that pair well with natural wood exteriors and Texas Hill Country stone. Teak Wood is a powder-coated woodgrain finish that gives you the wood look without the maintenance of real timber, and it’s become popular for homes in Steiner Ranch and Rough Hollow where the exterior palette leans warm.

For glass, Clear is the baseline: maximum visible light transfer, no tint. Low-E is the workhorse for Austin, reflecting solar heat while staying visually neutral from the inside. Frosted and Obscure glass are for privacy zones: bathrooms, bedrooms, ground-level rooms facing a street or neighbor. Black Tint and Gray Tint both reduce glare and solar gain, with Black Tint offering the darkest, most dramatic look. Gray Tint is subtler and reads as a neutral smoked glass. Tinted glass on a west-facing door in Austin can make a real difference in afternoon comfort.

Installation by Juniper Windows Austin in Austin

A door with a 36-foot span lives and dies by its installation. The frame has to be perfectly level, plumb, and square, or the panels will never glide the way they’re designed to. That’s the core reason we’re an authorized ViewLux installation partner rather than a drop-ship seller. Our crew installs these doors weekly across the Austin metro, from Lakeway to Round Rock to Buda, and we’ve seen what happens when someone cuts corners.

Our process starts before the door arrives. We inspect the rough opening, verify the header deflection, and confirm the substrate can handle the point loads a door this heavy creates. When we set the frame, we shim and fasten it to spec, checking level and plumb at every stage. Every perimeter joint gets AAMA 812 low-expansion foam sealant, installed per AAMA 2400 and 2410 installation standards. We flash the sill pan, integrate the drainage path, and run a water test on the finished install before we pack up.

Austin’s climate creates specifics we account for. Our soil shifts. Our summers bake aluminum frames to surface temperatures that warp cheap installations. Our humidity swings test sealants. We account for all of it: expansion allowance, proper anchoring, and sealant joints that flex without failing. One thing buyers should know: ViewLux’s manufacturer warranty covers the door, but only when it’s installed by an authorized partner using approved methods. A handyman or general contractor who isn’t trained on this system can void the warranty without realizing it. That’s a five-figure risk on a door this size, and it’s why proper installation isn’t optional. Call (325) 420-1750 to schedule a site consultation in Austin.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

Get a Quote – VLX 138 Panoramic Sliding Door in Austin

If you’re pricing the VLX 138 for an Austin project, the fastest path is a free on-site measurement. We’ll measure the opening, discuss track and glass configurations, and give you a written line-item quote with no change orders later. Juniper Windows Austin is your authorized ViewLux installation partner for the entire Austin metro. Call (325) 420-1750 to schedule your free estimate and get your project started.

Written by the team at Juniper Windows Austin, authorized ViewLux installation partner serving Austin, TX and surrounding communities.
